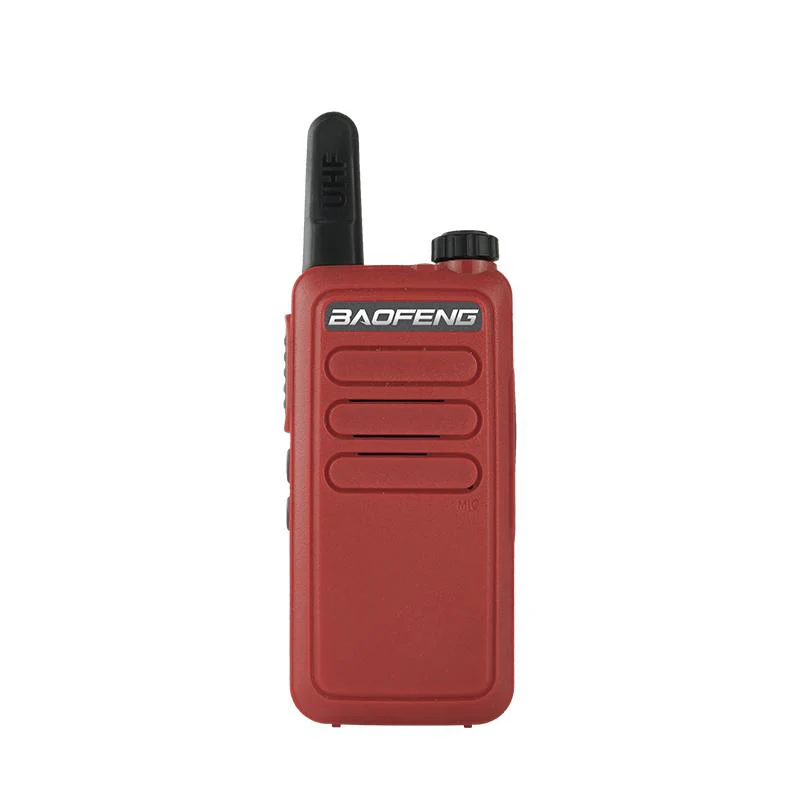

BF-T7

Main Features
Frequency range 420-450MHZ
Up to 16 Channels
Chinese/English Language
50 Groups CTCSS，105 Groups of standard DCS
Time-out timer(TOT)
Wide/Narrow band
Battery saving function
Busy Channel Lockout (BCL)
Low Battery Voltage Warning
Programmable by PC

General
Frequency range UHF420-450MHz
Memory channels 16 Groups
Operation voltage DC 3.7V
Frequency stability ±2.5ppm
Operation temperature -20℃—+50℃
Mode of operation Simplex
Antenna impedance 50Ω

Transmitter
RF Power 2W
Maximum deviation ≤±5KHz
Spurious emission ≤-60dB
Transmission current ≤1000mA
Preemphasis Character 6dB per octave

Receiver
Sensitivity <0.16uv (12dB SINAD)
Squelch Sensitivity <0.2uv
Audio power ≥380mW
Audio distortion <10%
Intermediation(W/N) ≥65dB
Receiver current ≤380mA

Standard Package Content
Walkie talkie
Li-Ion battery
Belt Clip
User's Manual
Charger
　

Download
T7_Users_Manual1567587298271
BF-480 program v1.5
