UV-17R 5W Dual Band Radio [Long Antenna Set]
HomeStore

UV-17R 5W Dual Band Radio [Long Antenna Set]

UV-17R 5W Dual Band Radio [Long Antenna Set]

UV-17R banner|Total functions

useful tips about the desktop charger

wireless frequency copy function

Adjustable Screen-on Time

Dual Alarm Function

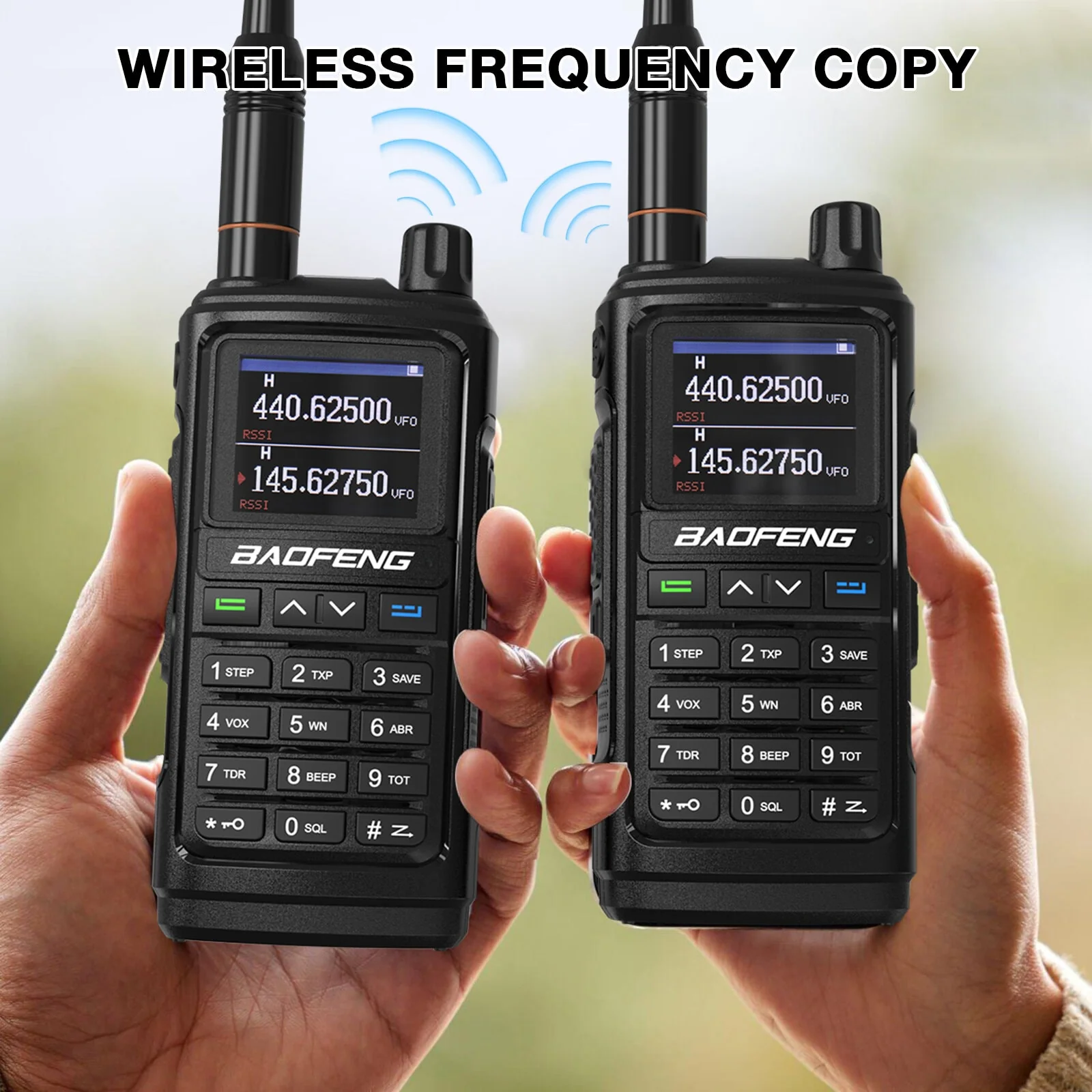

Wireless Frequency Copy

Streamline setup with wireless frequency copy for easy transfer between devices, ensuring seamless connectivity. Press "exit" to scan, "menu" to save. Since +/-2.5ppm is the accuracy of most ham radios, frequency deviation is normal when you perform wireless frequency copy with other radios.
　

Adjustable Screen-on Time

Easily customize the screen-on duration with options ranging from 5 to 20 seconds, or just keep it on, suiting your preferences and power-saving needs.
　

Dual Alarm Function

Stay prepared with UV-17R's flashlight and dual alarm. Local alarm through speaker or broadcast with siren/coded signals over the air.
　

Specification:
Frequency Range:
144-148MHz(TX&RX) , 420-450MHz(TX&RX) [US Version]
144-146MHz(TX&RX) , 430-440MHz(TX&RX) [EU Version]
FM: 78-108MHz(RX), WX: 161.650-163.275MHz(RX)
Power: 5W/2W
Channel Spacing: 25.0KHz(Wide)/12.5KHz (Narr)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1700mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Connection for Accessories: 2 pin Kenwood jack
Antenna Impedance: 50 Ohm

Select Quantity
From $7.80

Original: $25.99

-70%
UV-17R 5W Dual Band Radio [Long Antenna Set]—

$25.99

$7.80

More Images

UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 2
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 3
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 4
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 5
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 6
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 7
UV-17R 5W Dual Band Radio [Long Antenna Set] - Image 8

UV-17R 5W Dual Band Radio [Long Antenna Set]

UV-17R banner|Total functions

useful tips about the desktop charger

wireless frequency copy function

Adjustable Screen-on Time

Dual Alarm Function

Wireless Frequency Copy

Streamline setup with wireless frequency copy for easy transfer between devices, ensuring seamless connectivity. Press "exit" to scan, "menu" to save. Since +/-2.5ppm is the accuracy of most ham radios, frequency deviation is normal when you perform wireless frequency copy with other radios.
　

Adjustable Screen-on Time

Easily customize the screen-on duration with options ranging from 5 to 20 seconds, or just keep it on, suiting your preferences and power-saving needs.
　

Dual Alarm Function

Stay prepared with UV-17R's flashlight and dual alarm. Local alarm through speaker or broadcast with siren/coded signals over the air.
　

Specification:
Frequency Range:
144-148MHz(TX&RX) , 420-450MHz(TX&RX) [US Version]
144-146MHz(TX&RX) , 430-440MHz(TX&RX) [EU Version]
FM: 78-108MHz(RX), WX: 161.650-163.275MHz(RX)
Power: 5W/2W
Channel Spacing: 25.0KHz(Wide)/12.5KHz (Narr)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1700mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Connection for Accessories: 2 pin Kenwood jack
Antenna Impedance: 50 Ohm
