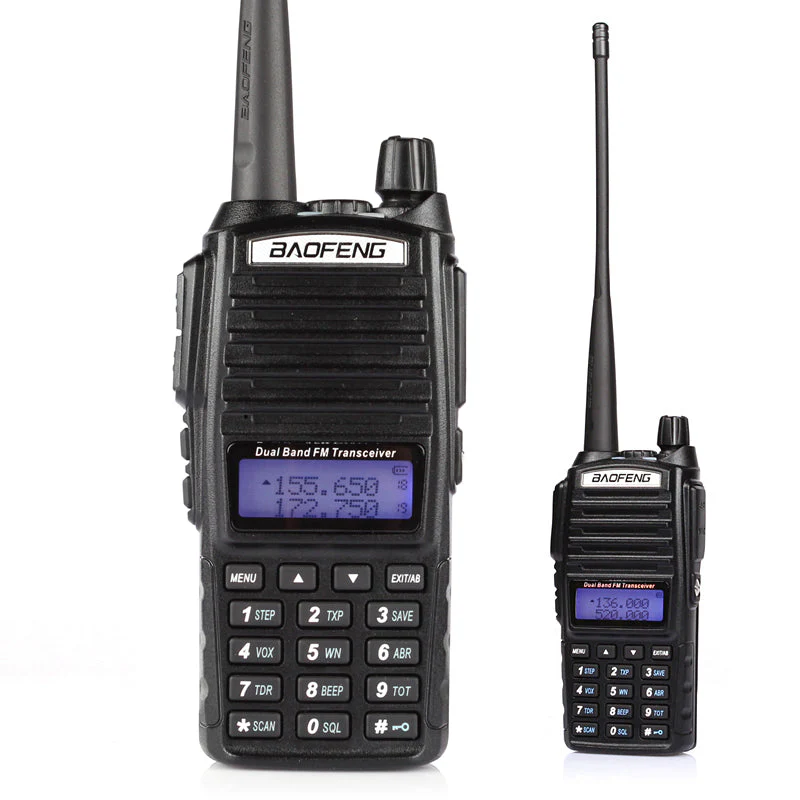

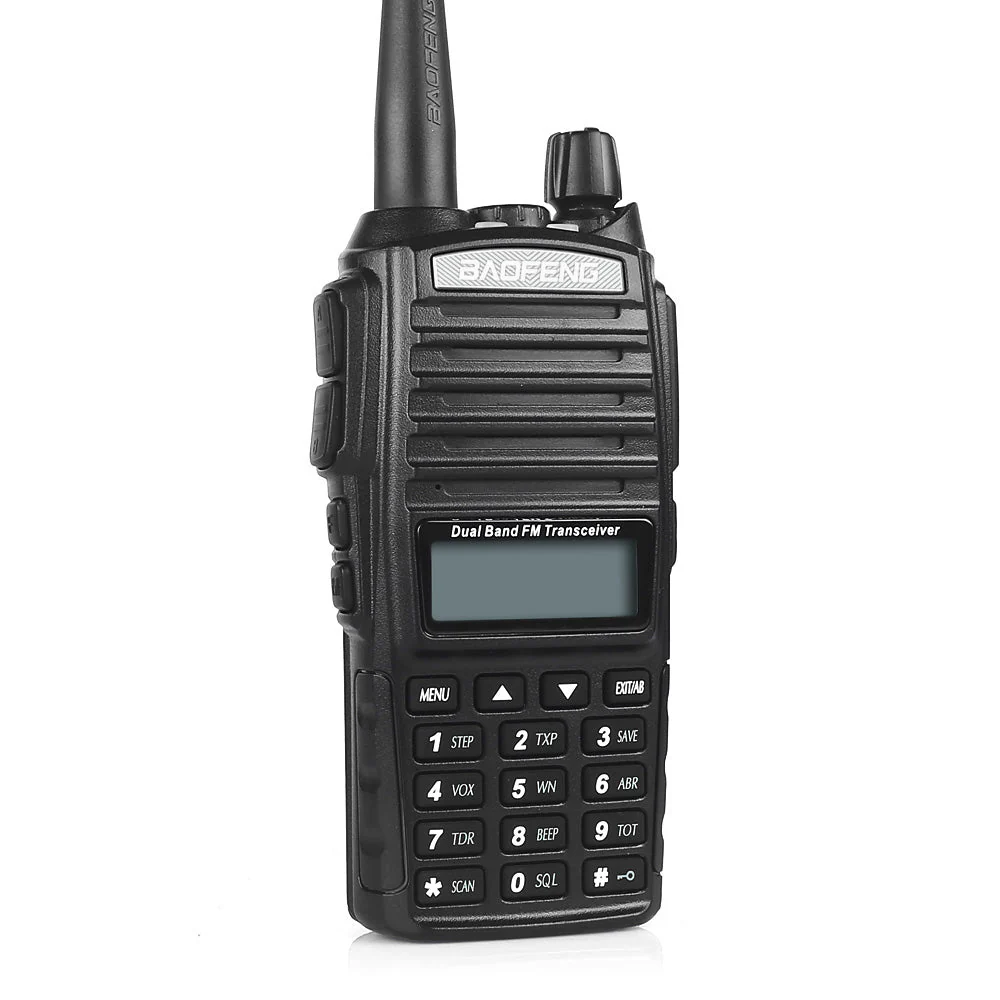

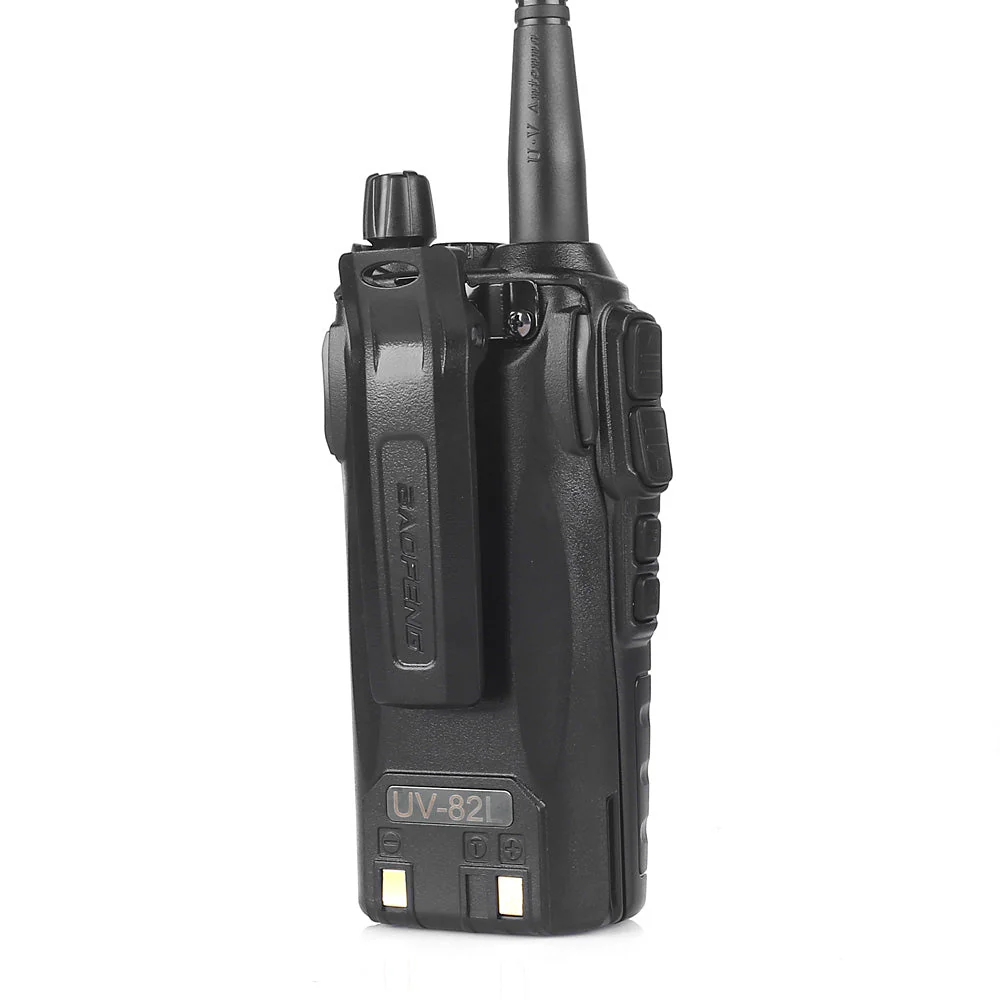

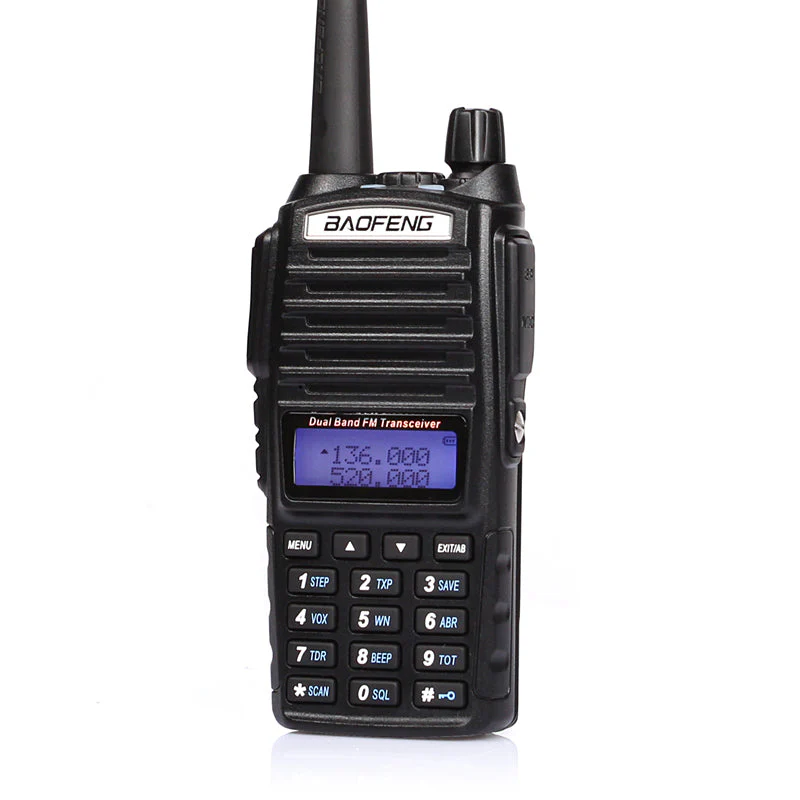

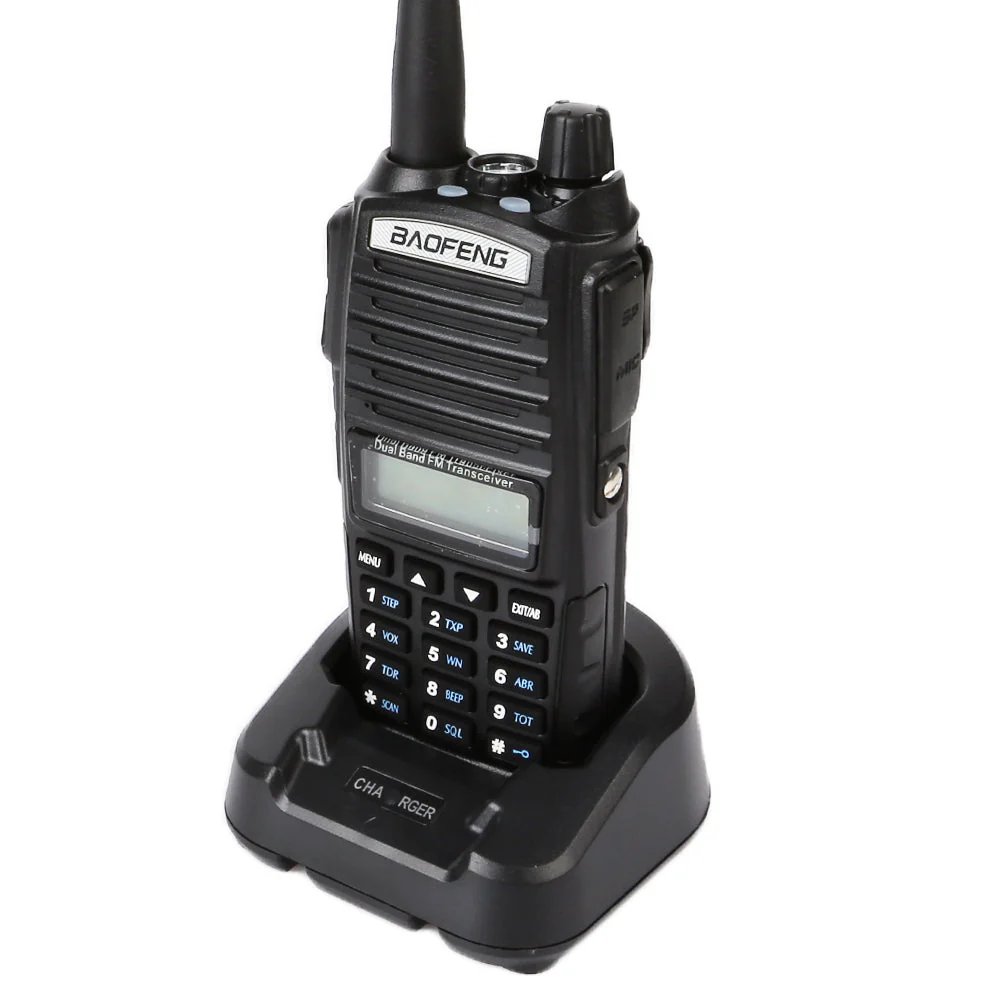

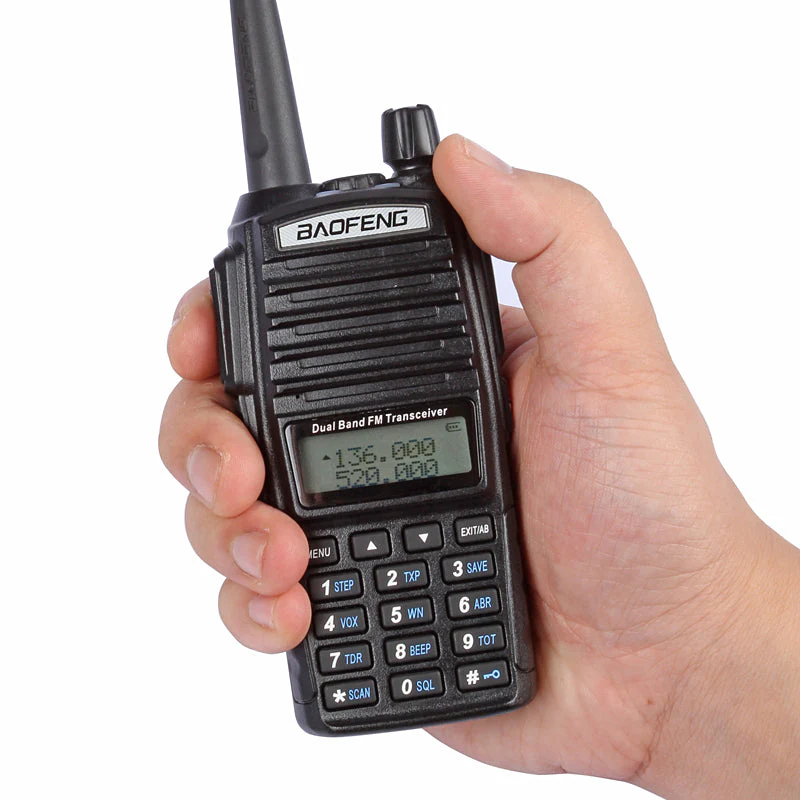

UV-82L 5W Dual Band Radio
Please note that we have already upgraded the software. If the software and driver in the CD does not work properly, please download the newest version: http://s3.amazonaws.com/UV-82L/UV82L-DRIVER%2BSOFTWARE.zip
This radio has upped the bar on ham radio technology! Compared to previous Baofeng products (UV-5R and the UV-B Series) this radio comes with a much louder speaker (1 watt!), a more solid design, larger buttons, and a better antenna. This radio can be programmed with or without a PC to also work on private repeater systems. (Save thousands compared to a Motorola / Kenwood setup).
Product Features:
25KHz/12.5KHz Switchable.

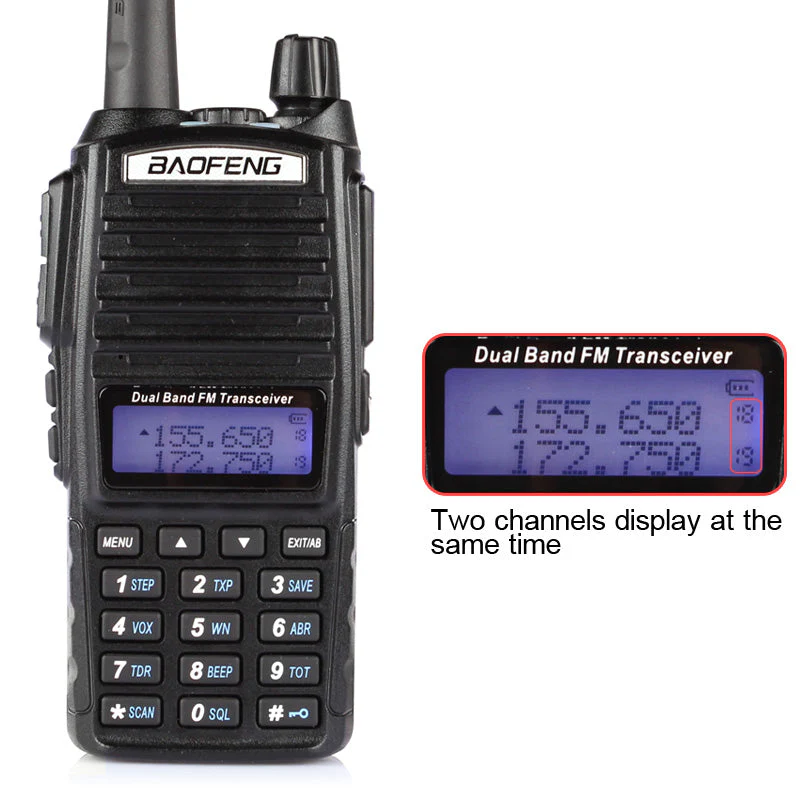

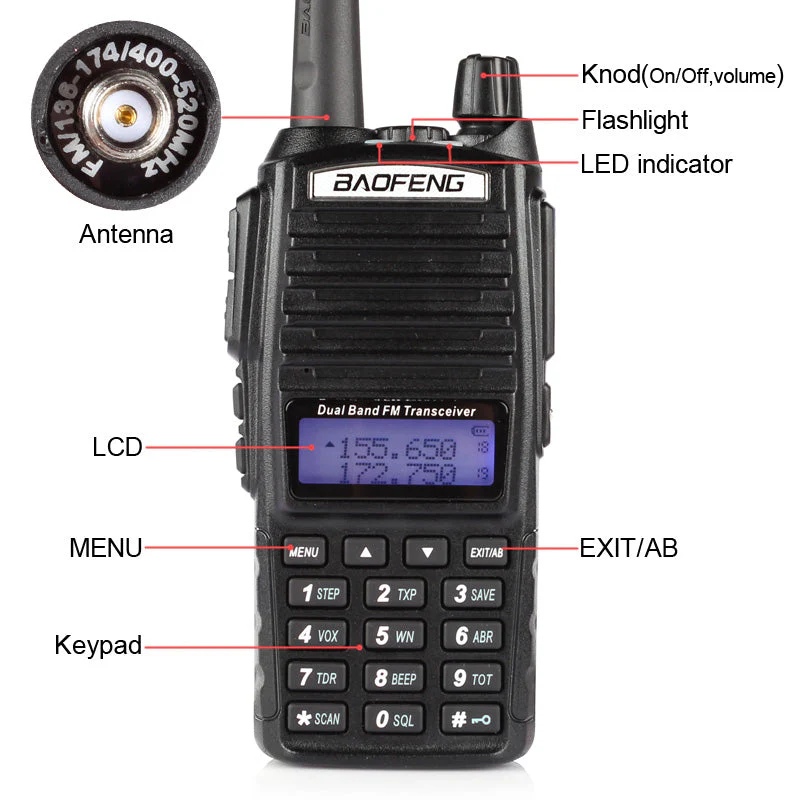

Large LCD Display. LED Flashlight.
High /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder and tone searching - dual standby.
PC programmable.
Wide/Narrow Band (25kHz/12.5kHz).
Transmitter time-out timer (TOT).
High/Low TX power selectable.
Busy channel lock-out (BCLO).
Specifications:
General Frequency Range: 136-174 & 400-520 MHz
Channel Memories: 128.
Frequency Stability: ±2.5ppm.
Antenna: High gain DualBand antenna.
Antenna Impedance: 50Ω.
Operating Voltage: DC 7.4V.
Mode of operation: Simple or semi-duplex.

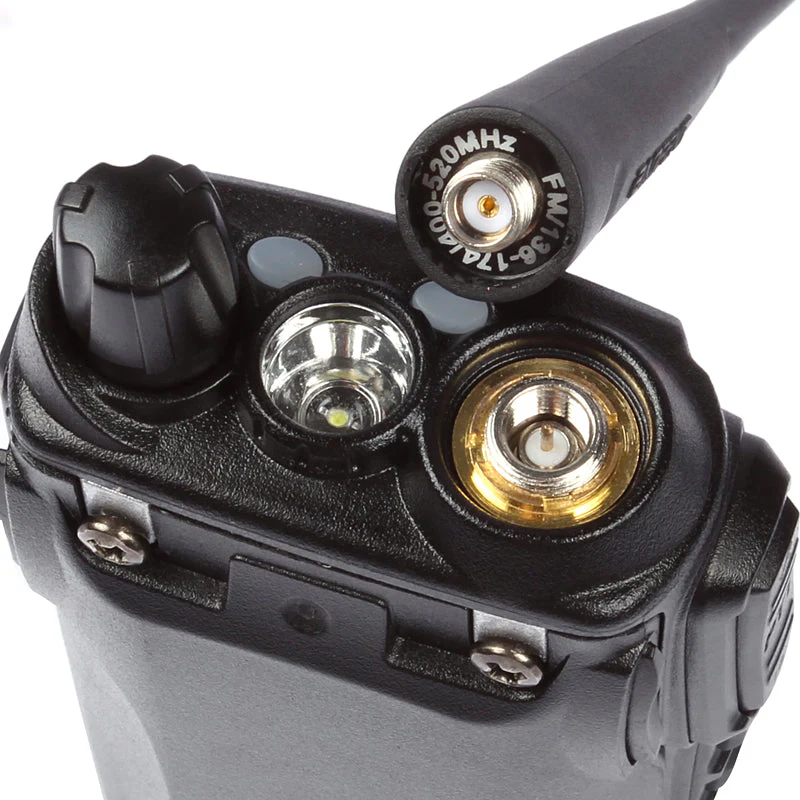

Antenna: SMA -Female.

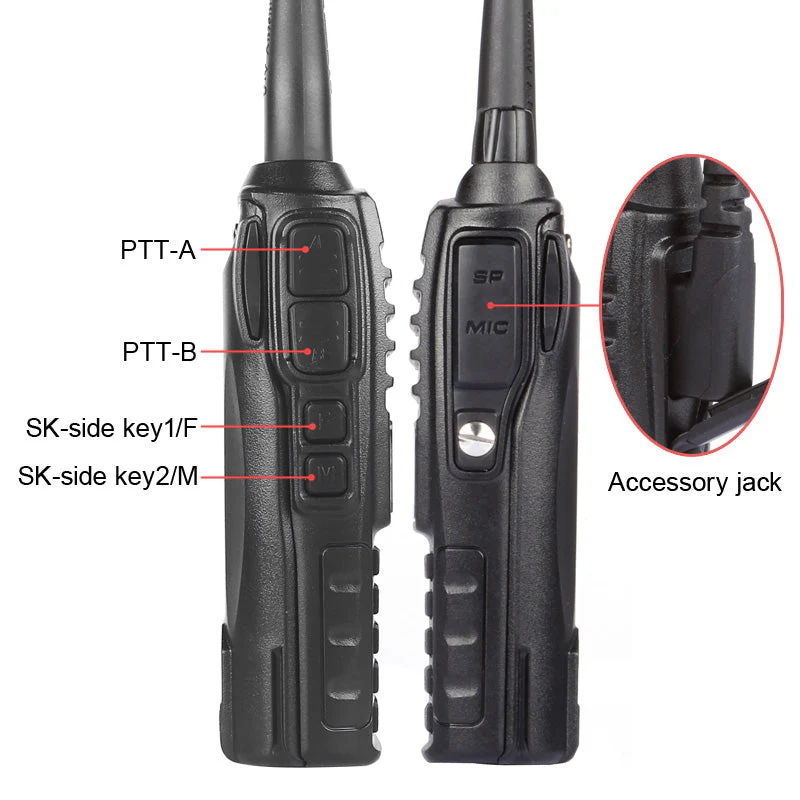

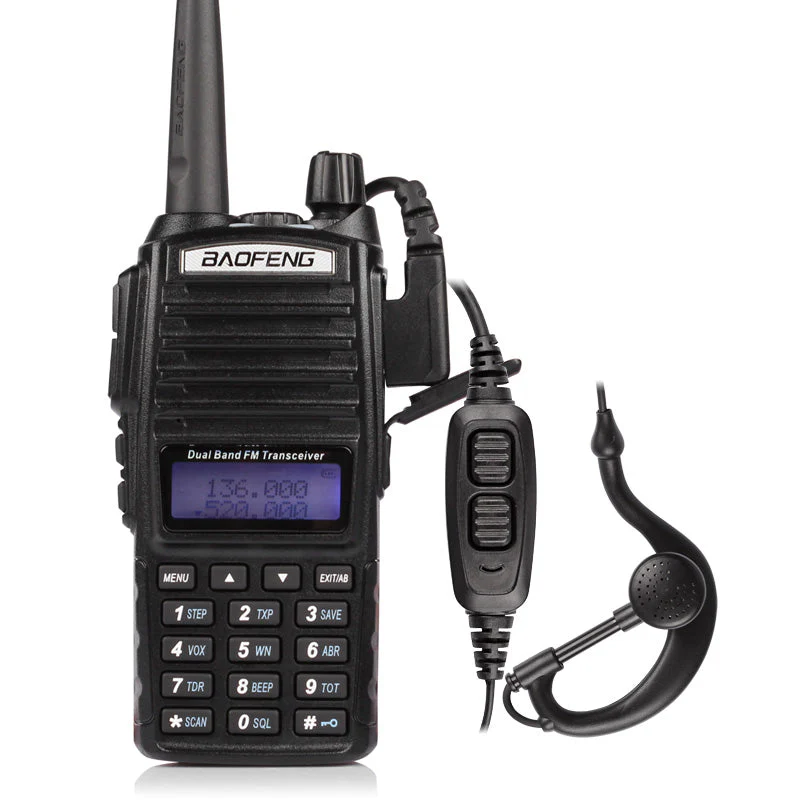

Earpiece/mic type: Kenwood Plug type.

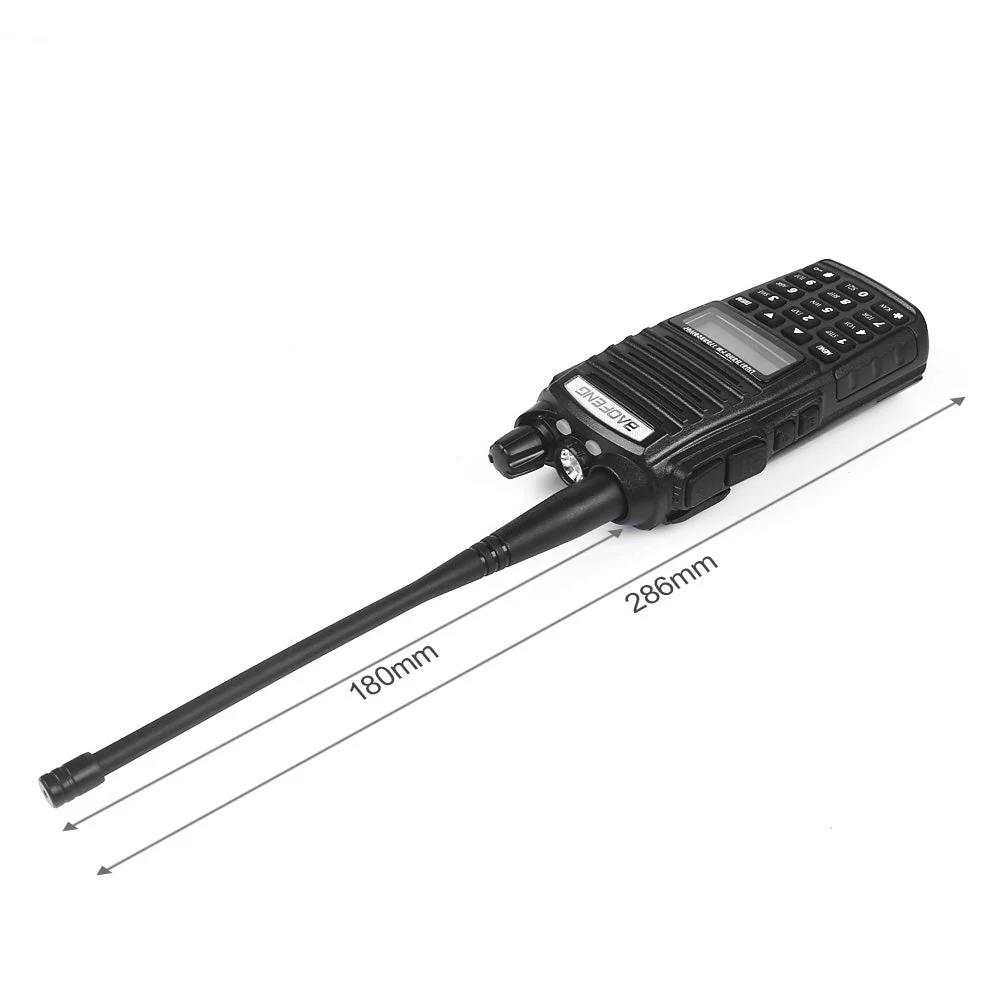

Dimension(W x H x D): 132 x 60 x 35 mm (not included antenna).
Weight: 238g (including battery, antenna).

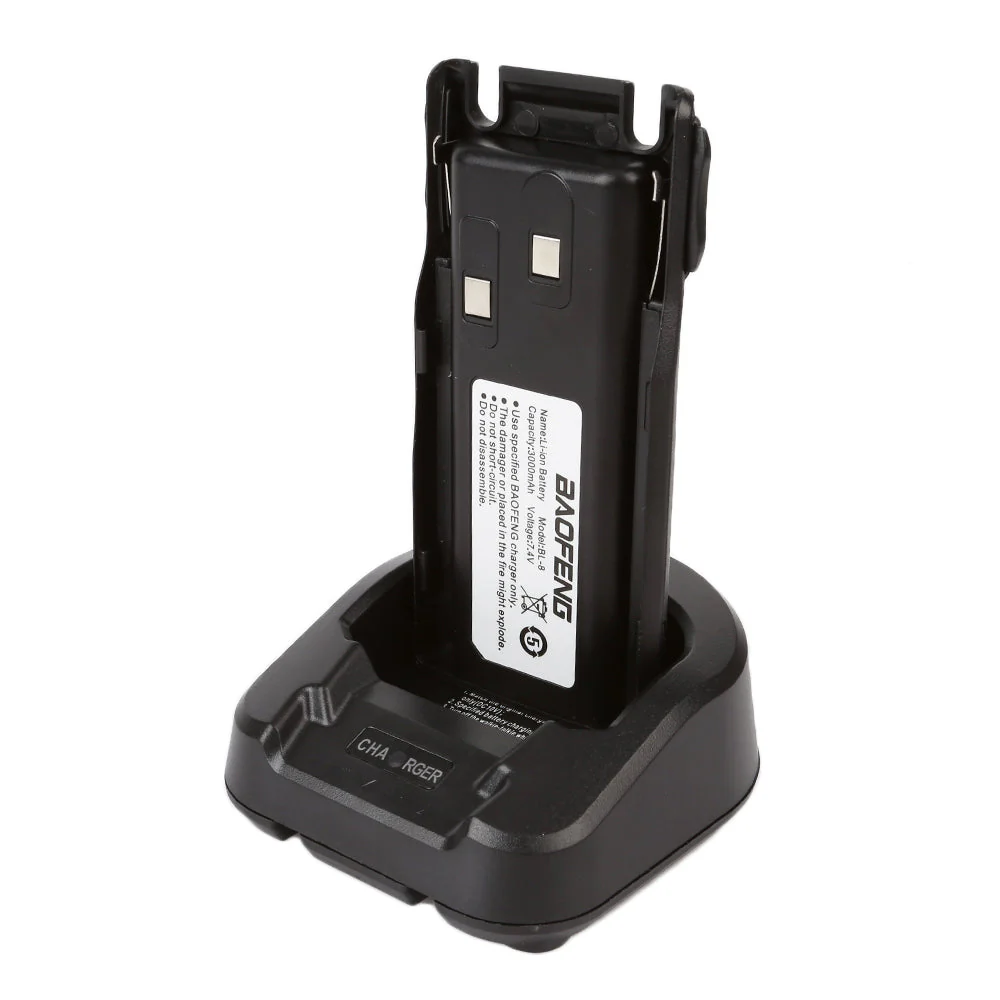

Power adapter: Input: AC100-240V, 50-60Hz;Output: DC10V/500mA;
Plug Type: US.
Transmitter: Output power: 5W / 1W (Max 5W).
Maximum deviation: 5kHz (Wide) / 2.5kHz (Narrow).
